Low cost, small, highly effective size

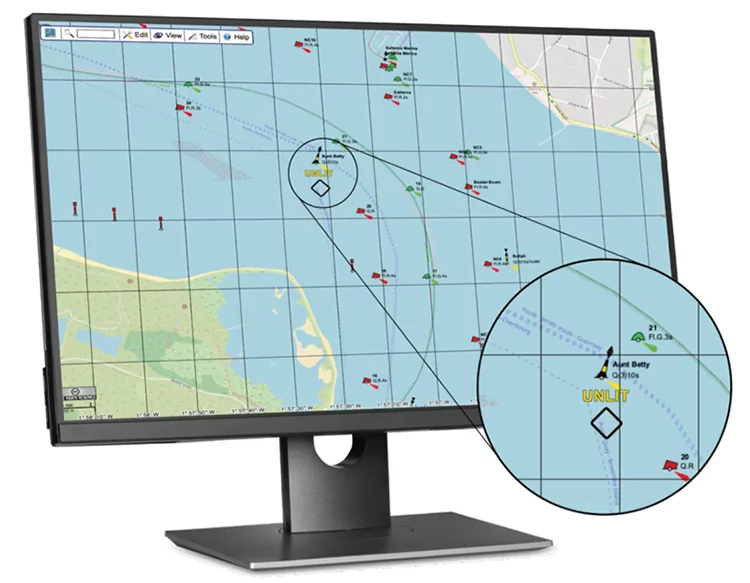

Using certified AIS AtoN Type 1 transmissions DAS EXPRESS 2 will continuously transmit the exact GPS location of the buoy to both your VTS centre display as well as on the chart display of all nearby vessels as a vital navigation aid. The lantern interface module enables DAS EXPRESS 2 to connect to any lantern and provide continuous monitoring to detect and report a malfunction. This ensures you always know that your buoy is in the correct location, the lantern working, and if not due to malfunction or sabotage you are instantly alerted.
Solar powered for years of maintenance free operation
DAS Express 2 is provided with 2 solar panels and brackets that will provide sufficient power to maintain the AIS AtoN battery in all conditions from the equator to the limits of the temperate regions. Each panel is rated at 10 W and the brackets and included fixings allow for flexible installation on the buoy’s structure. The proprietary Solar Panel bracket provides mechanical features to conveniently mount the Lantern Interface Module.
Fully integrated stand-alone AIS AtoN engineered to operate in even the most extreme conditions.
All electronics, including GPS and AIS/VHF are fully sealed within the toughened enclosure. DAS EXPRESS 2 can operate autonomously for years at a time using its own internal rechargeable battery connected to the provided solar panels .
Specifications
Standards Compliance
| AIS standard | IEC 61993-2 Ed 2.0 ITU-R M.1371-5 CCNR VTT Ed 2.0 |
|---|---|
| Serial data interface standards | IEC 61162-1 Ed 4.0 IEC 61162-2 Ed 1.0 IEC 61162-3 2008 Ed 1.2 |
| Environmental Standard | IEC 60945 Ed 4.0 |
| GNSS performance standard | IEC 61108-1 Ed 2.0 IEC 61108-2 Ed 1.0 |
| Product safety | IEC 60945 Ed 4.0 |
Downloads
| Data sheet | Click here to download |
|---|
Customisation
SRT products offer unmatched capability to be customised for specific applications and markets. Additional features and functions can be specified and implement
Branding
Our OEM products are supplied fully branded as per your specific requirements. This includes the product, all manuals and packaging such that upon arrival they
Certification
This product is fully tested and certified to the relevant international standards and product specifications. As part of the OEM customisation process into you
AIS Aids to Navigation (AtoN)
Easy and cost effective solutions for any port or waterway authority to significantly improve safety through effective and reliable monitoring of buoys, lanterns and the environment.
