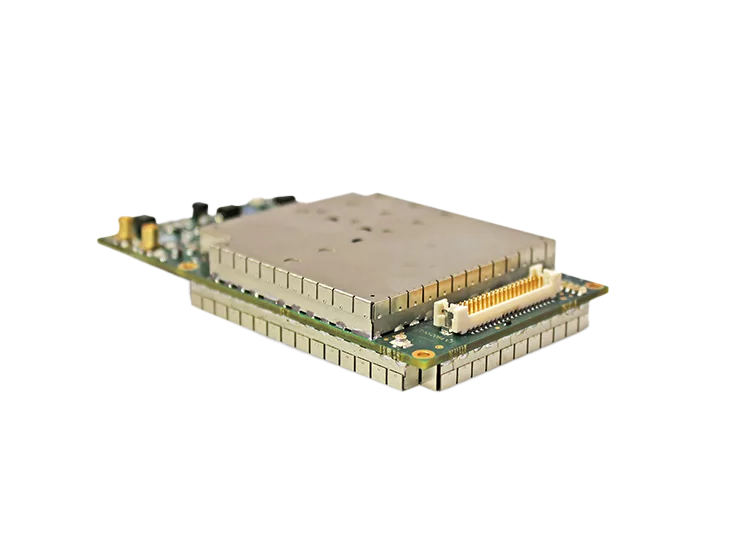

Mercury is a miniature AIS Class B transceiver module with an integrated high performance VHF antenna splitter which allows a single VHF antenna to be shared by the AIS transceiver and VHF DSC Radio.

Mercury is available in either standard (2W CSTDMA) or high powered (5W SOTDMA) configuration and delivers exceptional performance due to integrated HF-AIS technology and quality engineering. Mercury is supported by a complete developer integration kit.

Product Features

  • Fully tested and compliant to IEC and ITU Class A standards (TUV & BSH tested)
  • Fully integrated miniature PCA
  • Enhanced RF interference protection
  • Dual NMEA0183 & NMEA2000 data out puts
  • Integrated dual performance enhanced GPS and GLONASS
  • Exceptionally low power consumption
  • Multiple configuration options, including SAT-Trak & Encryption

Specifications

Standards Compliance

AIS standard IEC 61993-2 Ed 2.0
ITU-R M.1371-5
CCNR VTT Ed 2.0
Serial data interface standards IEC 61162-1 Ed 4.0
IEC 61162-2 Ed 1.0
IEC 61162-3 2008 Ed 1.2
Environmental Standard IEC 60945 Ed 4.0
GNSS performance standard IEC 61108-1 Ed 2.0
IEC 61108-2 Ed 1.0
Product safety IEC 60945 Ed 4.0

Downloads

Data sheet Click here to download

Customisation

SRT products offer unmatched capability to be customised for specific applications and markets. Additional features and functions can be specified and implement

About SRT

A global leader in the development and supply of technologies, products and systems that deliver maritime domain awareness.

Certification

This product is fully tested and certified to the relevant international standards and product specifications. As part of the OEM customisation process into you
