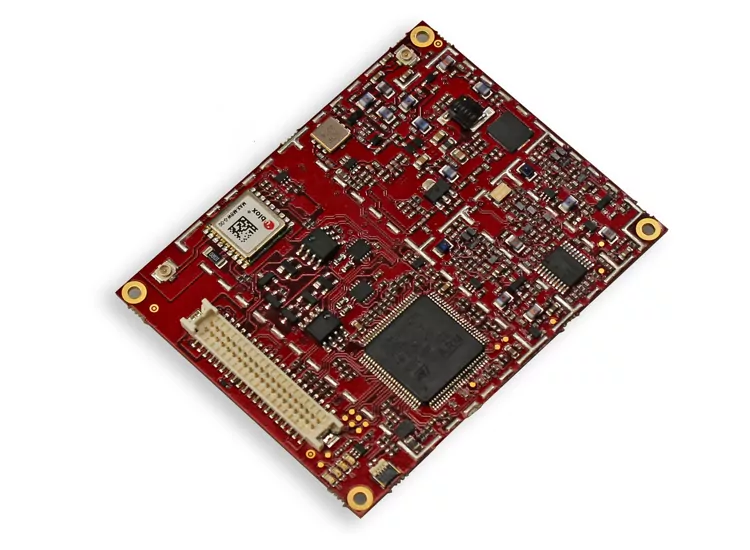

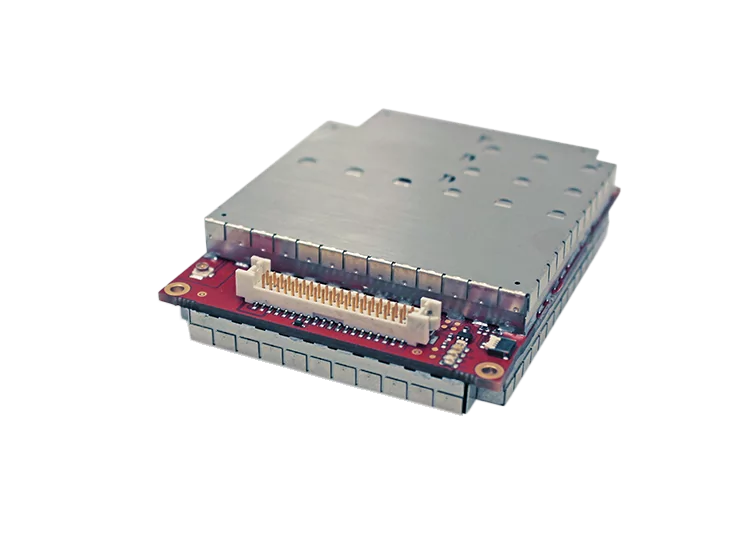

Genesis is a fully integrated miniature high powered AIS Class B transceiver module tested and certified compliant with IEC62287-2 (SOTDMA 5W).
Genesis will receive and process all AIS transmission types in real time and transmit full AIS Class B messages, with the capability for message customisation.
Class-leading performance
Genesis is designed for easy integration and exceptional performance courtesy of integrated HF-AIS technology. With built-in redundant processing capacity Genesis is easily customised and enhanced to easily deliver a wide range of additional functionality.
Highlights
- High Powered AIS Class B – 5W SOTDMA (IEC62287-2)
- Fully integrated miniature PCA
- Enhanced RF interference protection
- Dual NMEA0183 & NMEA2000 data out puts
- Integrated dual performance enhanced GPS and GLONASS
- Exceptionally low power consumption
- Multiple configuration options, including SAT-Trak & Encryption
- Full developer integration support kit and test reports for certification
Specifications
Standards Compliance
AIS standard | IEC 61993-2 Ed 2.0 ITU-R M.1371-5 CCNR VTT Ed 2.0 |
---|---|
Serial data interface standards | IEC 61162-1 Ed 4.0 IEC 61162-2 Ed 1.0 IEC 61162-3 2008 Ed 1.2 |
Environmental Standard | IEC 60945 Ed 4.0 |
GNSS performance standard | IEC 61108-1 Ed 2.0 IEC 61108-2 Ed 1.0 |
Product safety | IEC 60945 Ed 4.0 |
Downloads
Data sheet | Click here to download |
---|
![](https://srt-marine.com/wp-content/uploads/2023/09/modules-data-1024x576.png)
Customisation
SRT products offer unmatched capability to be customised for specific applications and markets. Additional features and functions can be specified and implement
![](https://srt-marine.com/wp-content/uploads/2023/09/AdobeStock_598893351-2-1024x439.jpg)
About SRT
A global leader in the development and supply of technologies, products and systems that deliver maritime domain awareness.
![](https://srt-marine.com/wp-content/uploads/2023/09/image-2-1-1024x512.png)
Certification
This product is fully tested and certified to the relevant international standards and product specifications. As part of the OEM customisation process into you
